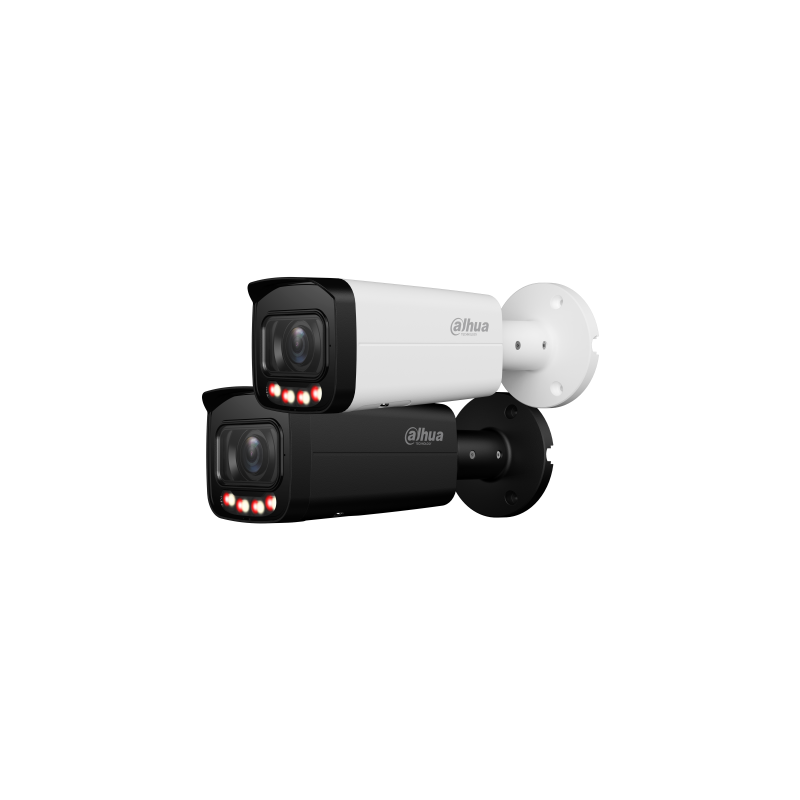

Smart Dual Light Vari-focal Bullet
search
  • Smart Dual Light Vari-focal Bullet
  • Smart Dual Light Vari-focal Bullet

Smart Dual Light Vari-focal Bullet

695,500 TND
TTC

IPC-HFW2649T-ZAS-IL

6MP Smart Dual Light Vari-focal Bullet WizSense Network Camera

> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 6MP (3288 × 1850) @20 fps, and supports 2688×1520 (2688 × 1520)@25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

Quantité

La quantité minimale pour pouvoir commander ce produit est 5.

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3288 (H) × 1850 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 60 m (196.85 ft) (IR)
Up to 60 m (196.85 ft)) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°;
Tilt: 0°–90°;
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 114°–32°;
V: 58°–17°;
D: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance
Lens Detect Observe Recognize Identify
W 64.0 m
( 209.97 ft)		 25.6 m
( 83.99 ft)		 12.8 m
( 41.99 ft)		 6.4 m

( 20.99 ft)
T 210.0 m
( 688.98 ft)		 84.0 m
( 275.59 ft)		 42.0 m
( 137.80 ft)		 21.0 m

( 68.90 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus
IPC-HFW2649T-ZAS-IL
